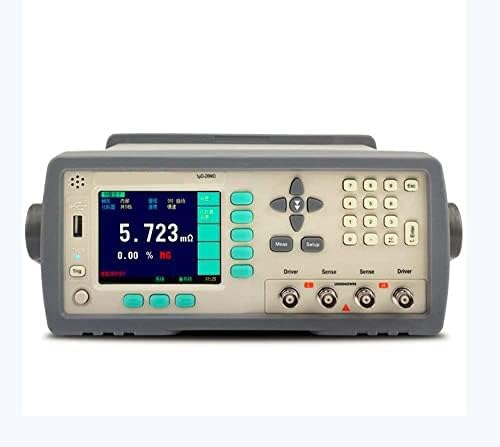

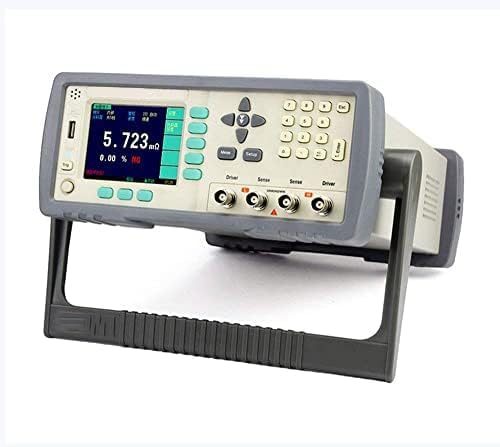

Benchtop Micro Ohm Meter 30KΩ Ohmmeters DC Resistance Tester Meter with 0.05% Accuracy 1μΩ-20MΩ Range USB Software ARM Microprocessor 30000 Data Storage Display
4.9 (72 items)
Limited Time SaleUS$540.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211160780 | Release Date | 2026/04/04 | List Price | US$360.00 | Model Number | 211160780 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DC resistance meter adopts high-performance ARM microprocessor, it is a desktop instrument that can do full-automatic real-time test with 0.05% accuracy and 1μΩ~20MΩ measurement range. With 5 digits display, 30000 reading, the maximum sampling rate is 7ms. The built-in temperature compensation interface to reduce the tolerance. The built-in 14 bins of comparator output, can setup 10 GD bins, all the comparator results can be output by Handler interface. The standard RS-232 interface, using SCPI, it can be communicated with PC, PLC or WINCE, to efficiently complete remote control and data acquisition. Technical Specifications * Parameter: DC Rresistance * Accuracy:0.05% * Measurement Range: 1μΩ～20MΩ * Measurement current: Max current：<1A * Range: 10 ranges,auto and manual * Speed: 80 times/second，15 times/second，2 times/second * Display: Show/ΔABS/Δ%/Sorting Results * Display Max: 30,000 * Adjustment: Short-circuit Zero-Adjust for each range. REL function * Comparator: 14 build-in comparators, HI/IN/LOW/GD/NG display and output, adjustable beep and volume * Trigger: Internal ,Manual ,External or Remote Trigger * Interface:RS-232C, Handler (PLC interface) * Temperature compensation: Accuracy: 0.2 °C Range: 0～80 °C * Method:4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground section * Other features: True-color TFT-LCD display Keypad locks function. Data Hold function Chinese and English menu * Power requirements: Voltage: 198VAC~240VAC Frequency: 50Hz Max Power: 15VA * Accessories: ATL501 Kelvin clip ATL108: 232 communication cable * Optional Accessories: ATL620 Meter Resistance Four-terminal Clip
- ★ High brightness, ultra clear four-color VFD Display.
- ★ Self-Calibration: Temperature compensation. Self-Calibration: Thermoelectromotive force compensation.
- ★ Adjustable Beeper and display. HI/IN/LOW/GD/NG sorting results display and output.
- ★ SCPI compatible command sets.
- ★ Keypad lock function. Data Hold function.
| Color | grey |
|---|---|
| Model | VTSYIQI202404161105VTSYIQI |
| Brand Name | VTSYIQI |
| Style Name | VTSYIQI202404161105VTSYIQI |
| Manufacturer | VTSYIQI202404161105VTSYIQI |
| Power Source | Battery Powered |
| Item Dimensions | 13.78 x 8.66 x 5.91 inches |
| Included Components | 1 |
