Bykski 80mm x 30mm RC Series Radiator, 80mm x 3, Triple Fan (CR-RD80X3RC-TN)
4.5 (123 items)
Limited Time SaleUS$61.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228885232 | Release Date | 2026/05/31 | List Price | US$40.80 | Model Number | 228885232 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

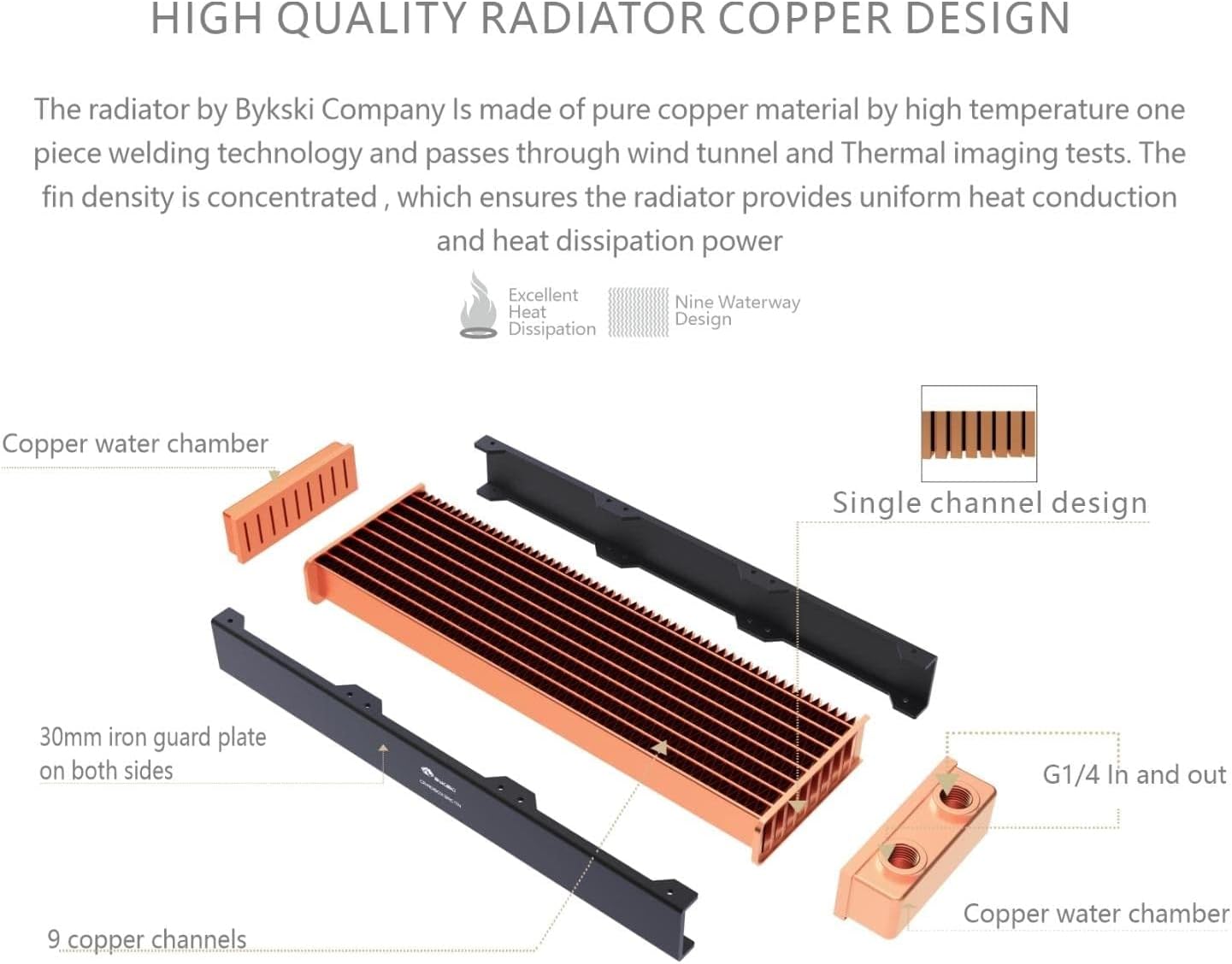

Bykski CR-RD80X3RC-TN radiator is designed as a single row of copper channels. The thickness of the radiator is 30mm whichallows this radiator to be mounted in smaller profile locations. The water channels and wave fins are made of red copper with a thermal conductivity up to 401 w/(M.K.). There are 9 water channels aligned in a single row. Features 9 Channel Design Industry Standard G1/4 Thread High Quality Copper Design Specifications Material: Copper Channels and Fins / Iron side plates (not in contact with coolant) Dimensions: 278.5mm x 81mm x 30mm Ports: 2 Port Thread: G 1/4 Mount Thread:M3 Channels: 9 Pressure: 1.5bar Compatibility Fans: 80mm Included Parts 1xRadiator 12x M3 x 30mm Screws12x M3 x 5mm Screws Warnings Radiator is formed by a high temperature integrated soldering process. Due to this, there will be a slight color change in the copper, this is a result of the process and not rust. Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding warranty. Radiator comes with M3X30mm screws suitable for fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, not included) Not responsible for any hardware damage. Use at your own risk."
- Designed as a single row of 9 copper channels. The thickness of the radiator is 30mm which allows this radiator to be mounted in smaller profile locations. The water channels and wave fins are made of red copper with a thermal conductivity up to 401 w/(M.K.).
- Dimensions: 278.5mm x 81mm x 30mm, Ports: 2, Port Thread: G 1/4, Mount Thread: M3, Pressure: 1.5bar
- Compatible with 80mm Fans (not included)
- Included Parts: 1x Radiator, 12x M3 x 30mm Screws, 12x M3 x 5mm Screws

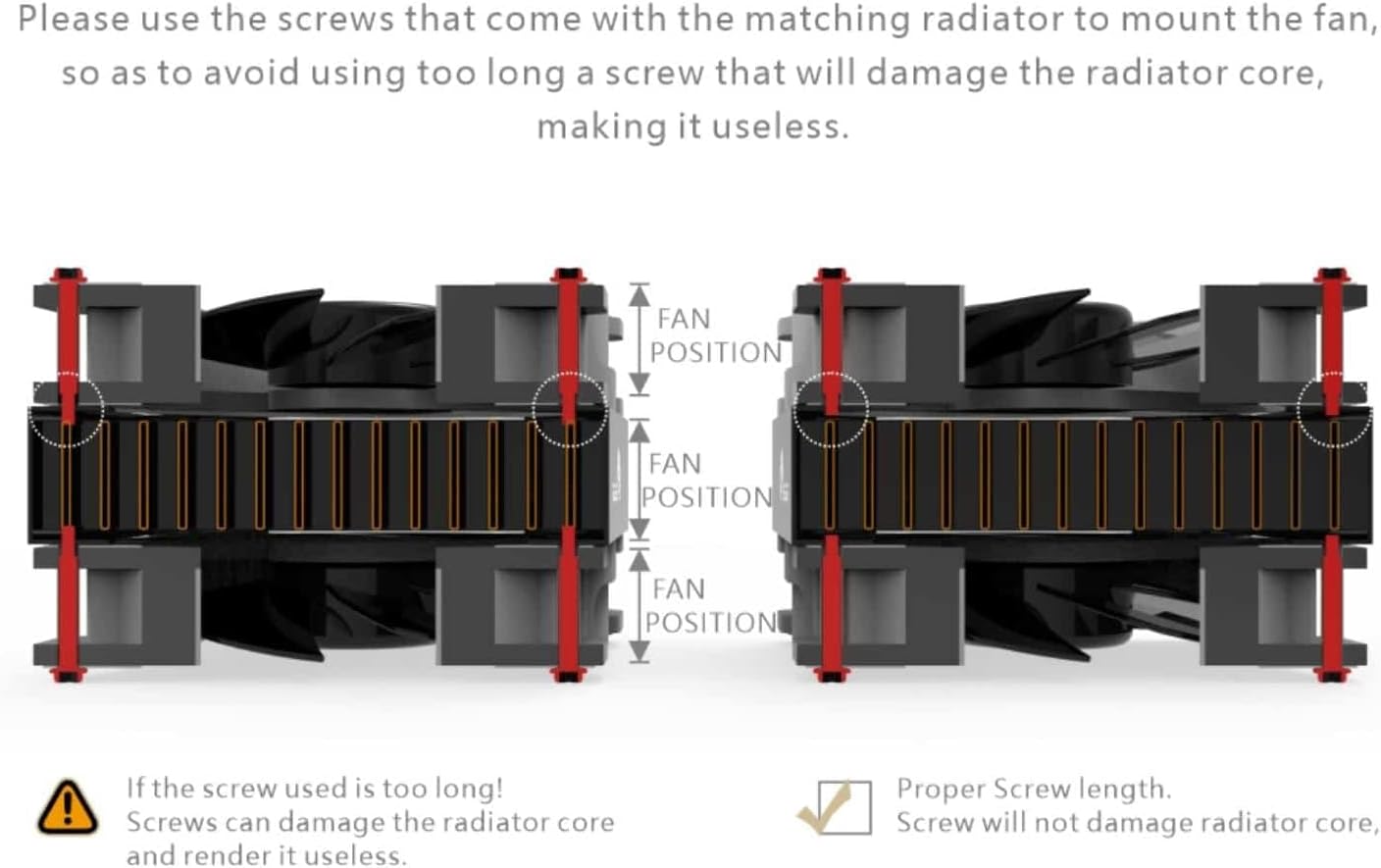

- Radiator comes with M3X30mm screws suitable for fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max)
| ASIN | B0BBBT2G9G |
|---|---|
| Item Weight | 5 pounds |
| Manufacturer | Bykski |
| Product Dimensions | 10.96 x 3.19 x 2.36 inches |
