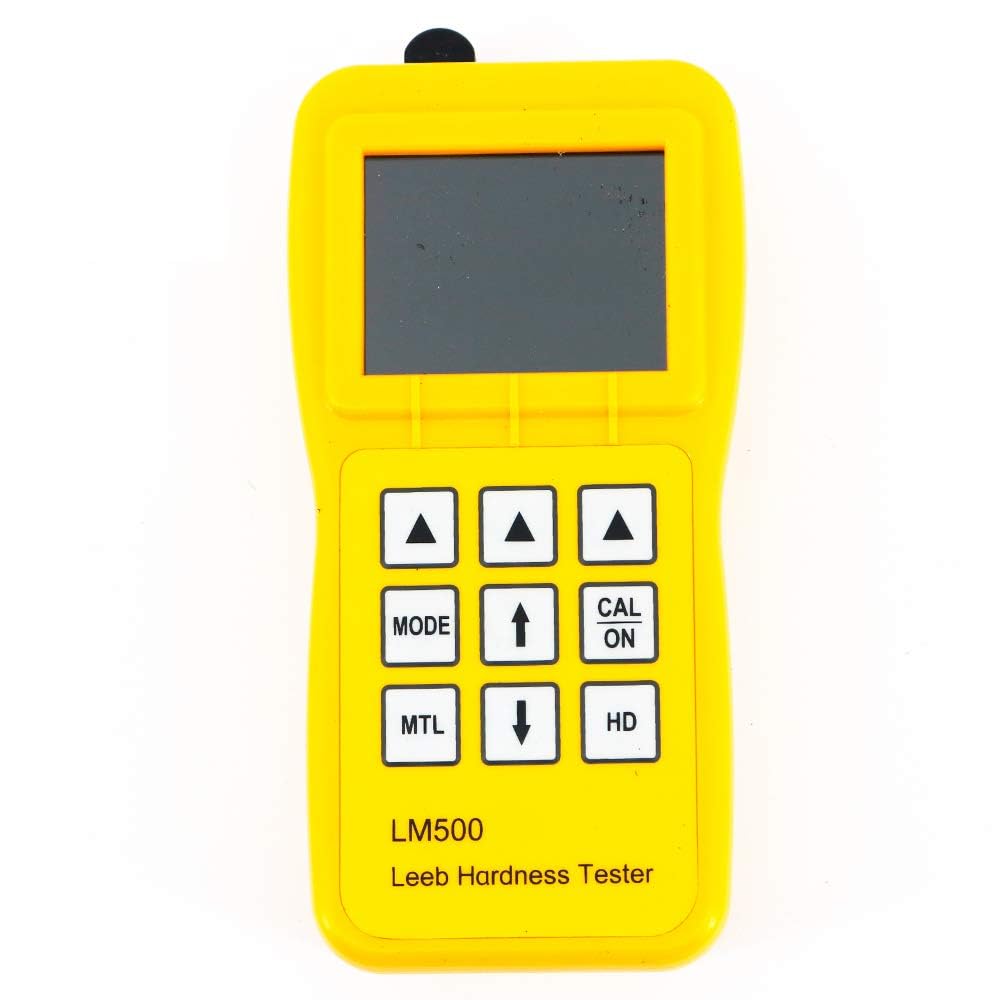

Small Parts Leeb Rebound Hardness Tester Durometer Equipment with Range 200 to 960HLD Accuracy ±6HLD G Type Impact Device for Small and Light Parts and Surface Hardening Layer Test
4.2 (94 items)
Limited Time SaleUS$795.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219325014 | Release Date | 2026/05/03 | List Price | US$530.00 | Model Number | 219325014 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Application: Portable Leeb Hardness Tester can be used in Defecting fields such as Installed Machineary and Permanent Assembly Parts, Mould Cavity, Heavy Workpieces, Pressure Vessels, Turbine and other Equipments and Small test area. Technical Specifications: * Display: High-Definiation 2.4" IPS Display * Measuring Method: Leeb Hardness Testing Method,Impact Type * Hardness Scale: HL, HB, HRB, HRC, HV, HS, Strength (σb) * Measuring Range: HLD（200-960） HRC（19.8-68.5）HRB（13.5-100） HB（30-651）HV（80-976） HS（26.4-99.5）σb（375-2639） * Impact Devices: C type impact device (Standard); * Accuracy Measuring: Error:±6HLD (HLD=800), Repeatability:±6HLD (HLD=800) * Measuring Direction: 360 degree * Material: Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel * Resolution: 1HL,1HV,1HB,0.1HRB,0.1HRC,0.1HS * Software: Standard LmView software, for management, archiving and printing the measurement data * Power: Two Alkaline battery（Battery not included in the package） * Data Memory: 200 Files, 11000 Groups（each group includes 1-8 testing values and 1 average value） * Temperature-10℃~ +50℃ * Size: 153mm×76mm×37mm（H×W×D) * Weight: 280g include batteries * Standard: GB/T 17394-1998,ASTM A956 * Standard Configuration: Leeb Hardness Tester, Standard Hardness Test Block, Software, USB Cable, Support Ring, Cleaning Brush, Packing Files, Instrument Case * Optional Accessories: Impact Device: D/G/DC/DL/D+15, Leeb Hardness Test Block, Rubber Protective Case, Belt, Standard Support Ring, Small Support Ring, Special Support Ring If you need Optional Accessories,Please contact us.
- ★ Color Display Leeb Hardness Tester with intuitive display curve interface and mass storage is a portable hardness measuring instruments which is much more convenient for users.
- ★ Resolution: 1HL,1HV,1HB,0.1HRB,0.1HRC,0.1HS; Impact Devices: C type impact device；Material: Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel
- ★ Display: High-Definiation 2.4" IPS Display; Measuring Method: Leeb Hardness Testing Method,Impact Type; Measuring Direction: 360 degree
- ★ Hardness Scale: HL, HB, HRB, HRC, HV, HS, Strength (σb); Accuracy Measuring: Error:±6HLD (HLD=800), Repeatability:±6HLD (HLD=800)
- ★ Measuring Range: HLD（200-960） HRC（19.8-68.5）HRB（13.5-100） HB（30-651）HV（80-976） HS（26.4-99.5）σb（375-2639）
| Model | VTSYIQI20230629456 |
|---|---|
| Brand Name | VTSYIQI |
| Part Number | VTSYIQI20230629456 |
| Manufacturer | VTSYIQI20230629456 |
| Item Dimensions | 13.78 x 8.66 x 5.91 inches |
| Included Components | Leeb Hardness Tester, Standard Hardness Test Block, Software, USB Cable |
