Water Cooled VFD Spindle Milling Motor 110V 1.5KW 24000RPM 400hz Φ80mm ER11 Collet for Wood Carving
4.0 (38 items)
Limited Time SaleUS$95.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209900692 | Release Date | 2026/04/02 | List Price | US$63.99 | Model Number | 209900692 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

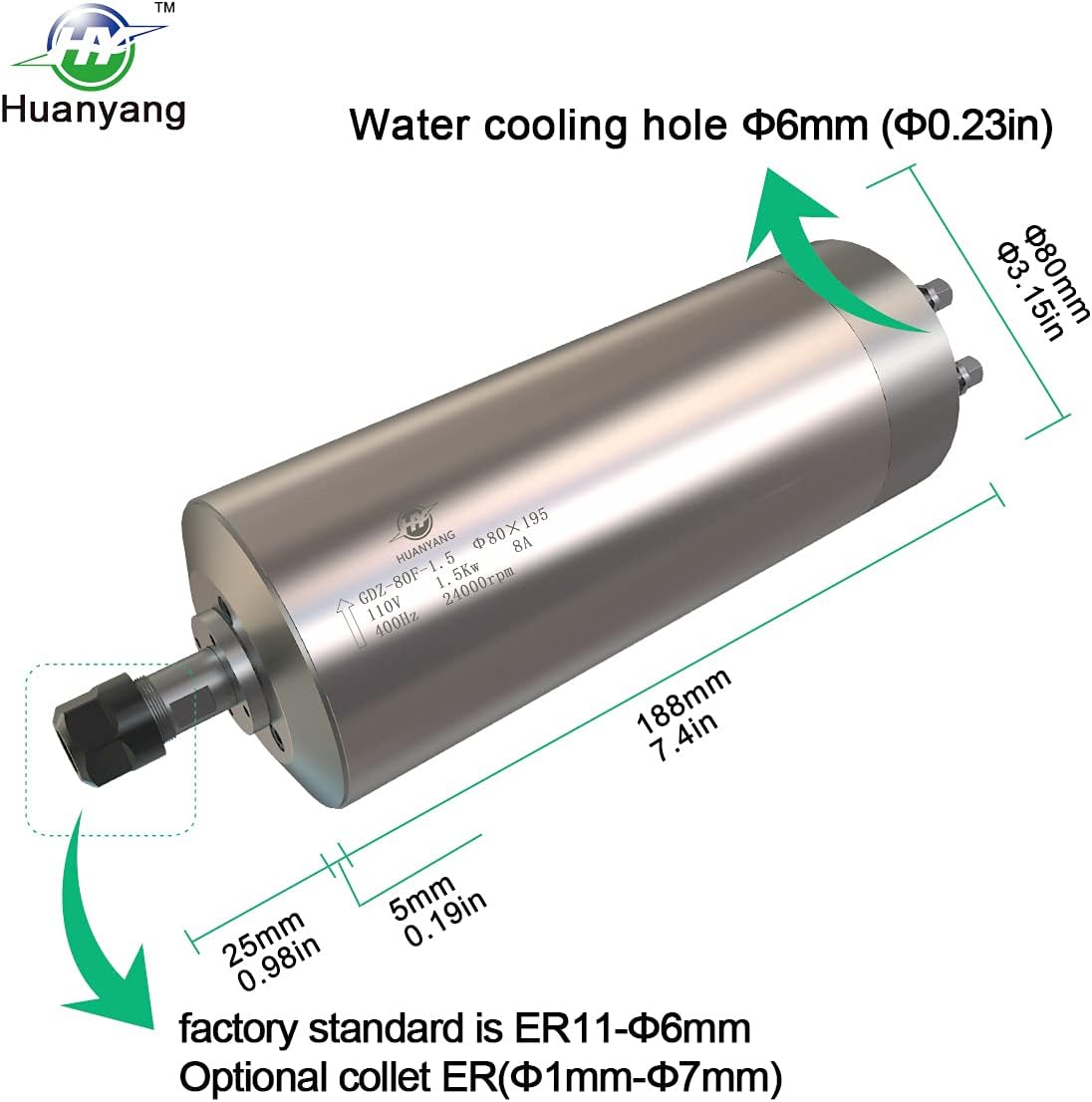

Note: It is recommended to use this spindle for wood carving, as this can improve the service life of the bearings specification :●Material: The cover is made of stainless steel, and the water jacket is high compression casting aluminum tube, red copper coil. ●Bearing: 6002 bearing (3pcs)● Voltage and rated current: AC 110V, 8.5A● ● Safe speed range: 8000-24000 RPM●Radial runout:≤0.025mm clamping mandrel vibrates at 30mm to nut ● Frequencies: 400Hz●Size: 80*195 (mm)●Collet: ER11 collet, 6mm is standard●Nut model: ER11-A(B)●Cooling way: water cycling cooling way●Lubrication way: high temperature resistance grease lubrication●Power interface: YX20 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 interfaces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire
- 【Powerful Bearings】Adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.

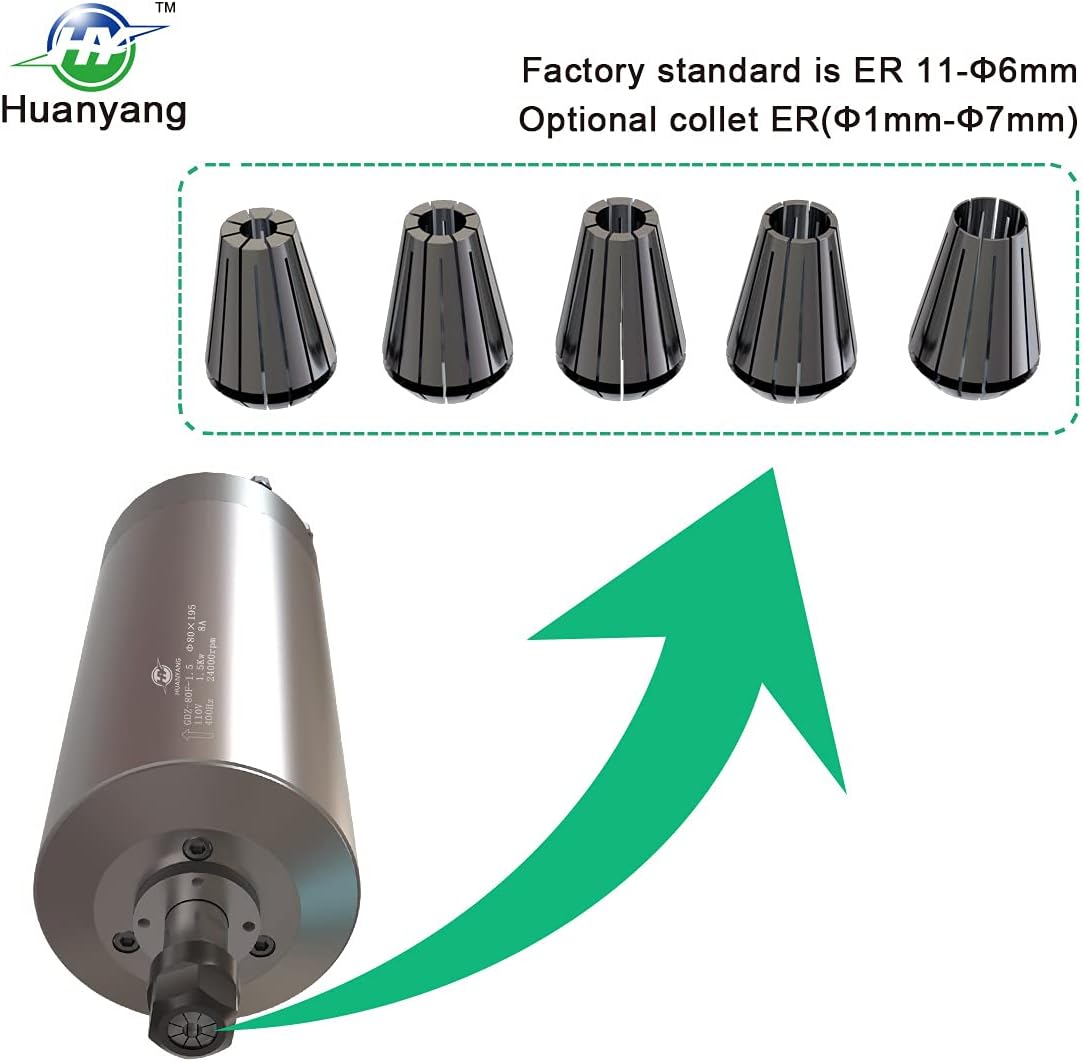

- 【High Precision Collet】ER11 Standard Collet, The collet of the CNC spindle is quenched with manganese steel, and the runout is less than 0.005 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
- 【Low Noise】The dynamic balance technology can effectively reduce the noise during use. The scientifically designed water circulation system has a better heat dissipation effect to ensure smooth operation.
- 【Characteristic Advantage】Shell is cooled by liquid cycle to reduce the heat rise caused by high-speed rotation.Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process,Adopt precision steel ball holder to ensure the rotation precision of the spindle in high speed grinding,
- 【WARRANTY ASSURANCE】Half a year warranty,you can contact us if you have any problems, we will carry out after-sales service for you
| UPC | 724509858268 |
|---|---|
| Model | 110-1.5-3 bearings |
| Speed | 24000 RPM |
| Voltage | 220 Volts |
| Brand Name | HY HUANYANG |
| Horsepower | 2.00 |
| Model Name | 110-1.5-3 bearings |
| Unit Count | 1.0 Count |
| Manufacturer | Huanyang Electrical |
| Material Type | Stainless Steel |
| Item Type Name | water cooled spindle |
| Shaft Diameter | 6 Millimeters |
| Included Components | Stainless steel |
| Warranty Description | Spindle warranty for half a year,(artificial damage is not included) |
